TS9 Straight to SMA Female 15cm Cellular Patch Lead
$20.35 - xxx
Or make 4 Interest free fortnightly payments of
$xx.xx
with
PayPal
Overview:

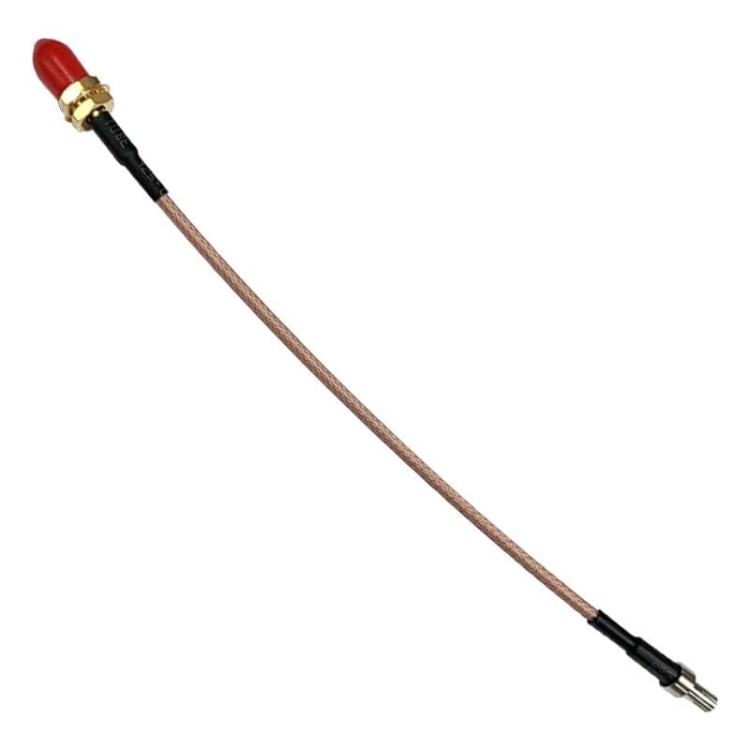

TS9 Male to SMA Female patch lead measuring 15cm for patching antenna cables that have a SMA Male to a router or device that has a TS9 Female socket such as the Netgear Nighthawk LTE and 5G cellular router.
- We use Australia Post for most of our deliveries.
- Orders are typically processed and shipped with tracking details within 1-3 business days. You can expect your parcel within 2-8 business days from when it leaves our warehouse.
- For more info, visit our Delivery or Refunds & Returns pages.
| SKU | PAT-TS9M-SMAF-015 |
|---|---|
| Manufacturer | Telco |
| Cable Type | RG316 |
| Impedance | 50 |
| Cable Length | 15cm |
| Connector | TS9 (Male) |
| Connector #2 | SMA (Female) |
| Colour | Multi Colour |
This is the router to antenna connection cable for cellular routers that have TS9 antenna ports and antenna cables that have SMA male plugs.
For MIMO configuration which gives faster cellular data speeds, you will need 2 of these cables. A MIMO antenna or 2 antennas which are mounted at 90 degrees axis from each other on a 45 degree axis from vertical.
Most modems can also just use a SISO configuration using 1 of these cables and 1 antenna plugged into the master port, but the data speeds won't be as fast with a SISO configuration compared to a MIMO antenna configuration.
