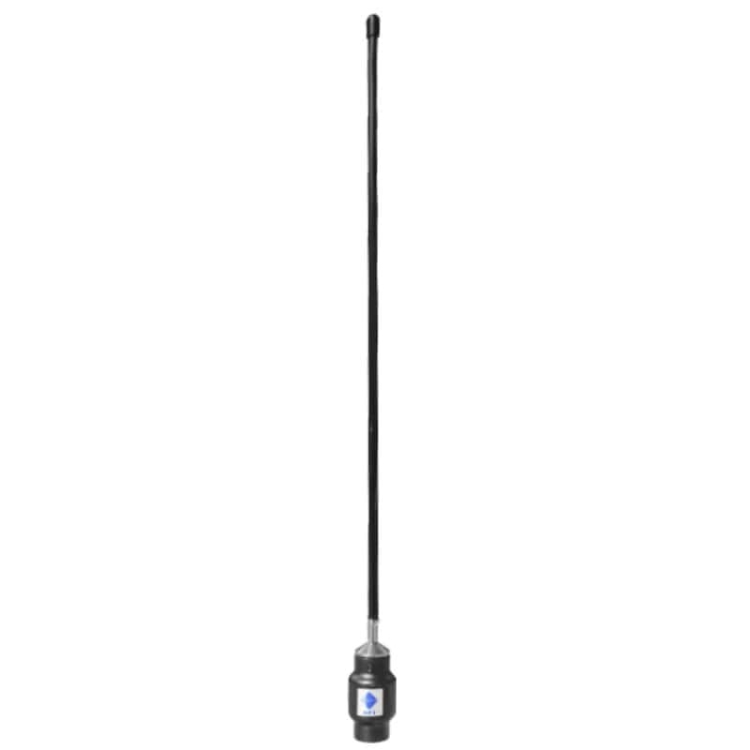

RFI UHF 4dBi 380-440MHZ Mopole Antenna Stud Mount with 5m Cable No Connector

  $77.00 - xxx
Or make 4 Interest free fortnightly payments of $xx.xx with PayPal

Overview:

RFI UHF 4dBi 380-440MHZ Mopole Antenna Stud Mount with 5m Cable No Connector
  • We use Australia Post for most of our deliveries.
  • Orders are typically processed and shipped with tracking details within 1-3 business days. You can expect your parcel within 2-8 business days from when it leaves our warehouse.
  • For more info, visit our Delivery or Refunds & Returns pages.
SKU RFI-CD516573
Manufacturer RF Industries
Colour Black
Antenna Frequency 380 - 440 MHz
Antenna Gain 4 dBi
Antenna Length 360mm
Removable Whip No
Mounting 13mm Stud
Cable Length 5m
Cable Type RFI-9006 (RG58)
Connector N/A
Antenna Material / Construction Copper braid element in flexible nylon tubing
Antenna Power 50W
VSWR <1.5:1
.

When the CD51-65-70 gets mounted on a vehicle gutter or similar position, these UHF Mopoles provide optimum performance with a largely omni-directional pattern.

Due to the low angle of radiation inherent in the dipole antenna pattern, a 4.0 dB improvement in performance is typical when compared to a 3 wave whip in the centre of a metal roof.

The end fed design of the UHF Mopoles incorporates a truly unique transformer in the base section.

In this patented feed assembly, the dielectric of the coaxial feeder cable is trimmed to a set length and then introduced into the coil in termination.

The result is a precisely matched feed which is so consistent that tuning to frequency from a chart becomes a matter of course.

CD51 antennas are fitted with a flexible nylon radome over a copper element - ideal in industrial applications. CD50 antennas have an elegant and durable tapered stainless steel whip section.

There are two styles of mounting arrangements offered.

The CD50-xx-70 and CD51-xx-70 versions mount via a threaded stud and nut assembly.

The antenna can be easily terminated, tuned and re-terminated in the field using the instructions supplied.

Its patented design allows the coaxial cable to be replaced in the field without specialised tools or soldering.

The CD50-xx-50 and CD51-xx-50 versions mate with the MBC coaxial base providing an internal, permanent connection in a completely sealed unit.

The MBC base is easy to install and allows the entire antenna to be removed and replaced at will.

Features:

  • Versatile - Ground plane independence allows alternative mounting locations
  • Performance - High performance and largely omni-directional pattern when not centre roof mounted
  • Convenient - Patented design allows termination or retermination in seconds
  • Stainless steel whip or flexible nylon whips cater to individual needs
  • Durable - Base coil is virtually indestructible
  • Unique transformer design
  • Australian Patents #596830 and #656793



Notes:

  1. Mopoleâ„¢ antennas such as the CD50 and CD51 exhibit a 4dB improvement in performance over a ¼ wave whip but in pattern tests deliver only 2.0 to 2.5dB of actual gain. This improvement in performance can be attributed to a lower angle of radiation and is of particular benefit to users in rugged terrain conditions and in heavily built up city areas.
  2. Available preterminated with 5m 8058 RG58C/U. Use -73 or -53 suffix to replace -70 or -50 suffix.
