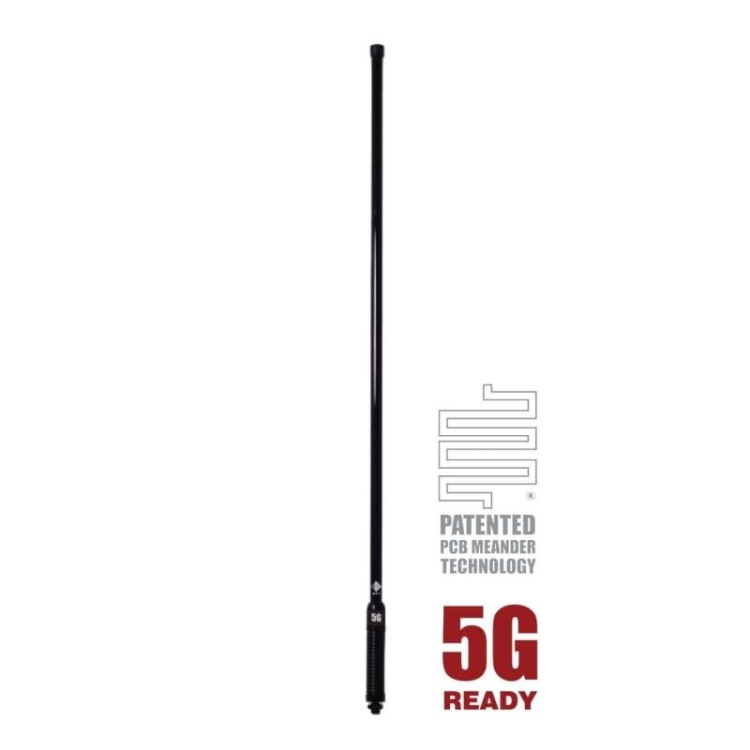

RFI CD8194-B 5G 5dBi Black Cellular Mobile Phone Antenna
The RFI CD8194-B LTE Antenna has a flexible PCB design that allows for superior gain consistency across 3G, 4G and 5G bands. The CD8194-B is a 5.5dBi Antenna and suited to mobile applications where height is a operational factor.
FAST DELIVERY
On all in-stock items
The CD8194-B is RFI's new 3G, 4G and 5G LTE antenna. The CD8100 Series antennas cover the 3G and 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) and also the 5G LTE band (3400-3800 MHz).
The CD8194-B is ideal for use with cellular modems & the Cel-fi range of mobile repeaters, especially when on the fringes of carrier reception.
The performance of the CD8194-B is outstanding thanks to the use of Meander radiating elements. These elements are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The CD8194-B is a unique antenna able to operate across all mobile phone networks globally.
| Colour | Black |
|---|---|
| Antenna Frequency | 698 - 960 / 1427 - 1517 / 1710 - 2700 / 3400 - 3800 MHz |
| Antenna Gain | 5.5 dBi |
| Antenna Length | 675cm |
| Removable Whip | No |
| Strength | Standard Duty |
| Mounting | 16mm Stud |
| Cable Length | 5m |
| Cable Type | RFI-9006 (RG58) |
| Connector | SMA (Male) |
| Antenna Material / Construction | PCB Radiating Element Housed in Fibreglass Whip |
| Antenna Power | 10W |
| VSWR | <2.5:1 |
