RFI CDQ7194-B 5dBi Black Cellular Cellular Mobile Phone Antenna
Overview:
- We use Australia Post for most of our deliveries.
- Orders are typically processed and shipped with tracking details within 1-3 business days. You can expect your parcel within 2-8 business days from when it leaves our warehouse.
- For more info, visit our Delivery or Refunds & Returns pages.
| SKU | RFI-CDQ4B-SMA |
|---|---|
| Colour | Black |
| Antenna Frequency | 698 - 960 / 1710 - 2170 / 2500 - 2700 MHz |
| Antenna Gain | 5 dBi |
| Antenna Length | 735mm |
| Removable Whip | Yes |
| Removable Whip Connection | RFI Q-Fit |
| Diameter | 22.5 to 15.6mm Tapered |
| Strength | Heavy Duty |
| Mounting | Heavy Duty Spring with 13mm Stud |
| Cable Length | 5m |
| Cable Type | RFI-9006 (RG58) |
| Connector | SMA (Male) |
| Antenna Material / Construction | PCB Radiating Element Housed in Tapered High Impact Fibreglass Whip |
| Antenna Power | 10W |
| VSWR | <2.5:1 |

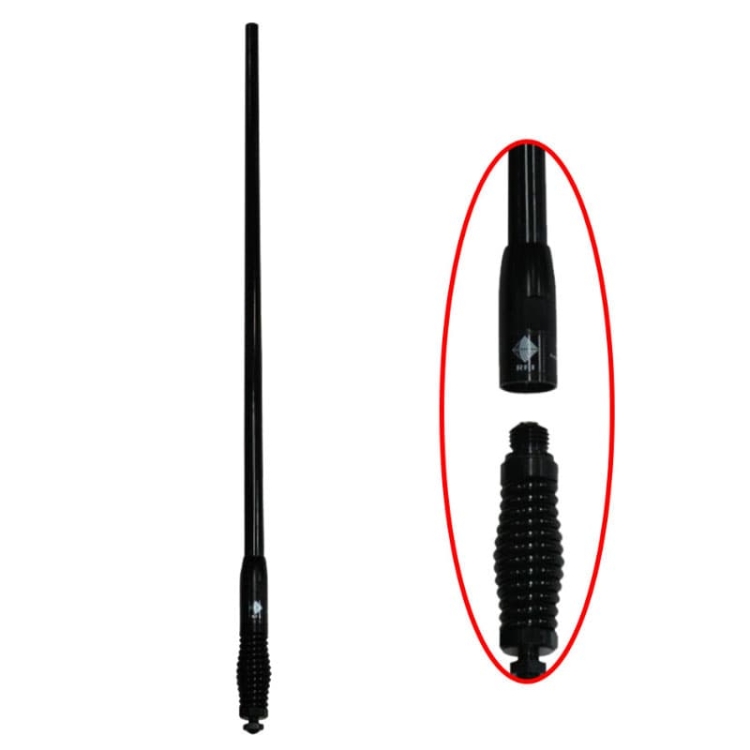

RFI Black heavy duty and tough looking Cellular 3G, 4G Antenna that has a removable whip using the RFI Q-Fit® QuickFit system that attaches to a heavy duty spring base with 5m coaxial cable and SMA male connector on the end.
The antenna has a nominal gain of 5.5dBi at 698-960MHz
See our MORE INFORMATION tab for specifics on actual frequency range and gain across the frequency ranges that this antenna can handle and our DOWNLOADS tab for downloads related to this antenna.
Patented PCB based collinear design offering the ultimate in pattern and gain stability
Ideal for new 3G and 4G LTE networks with true multi-band coverage
High gain across all bands making it suiting fringe and rural applications
Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security
