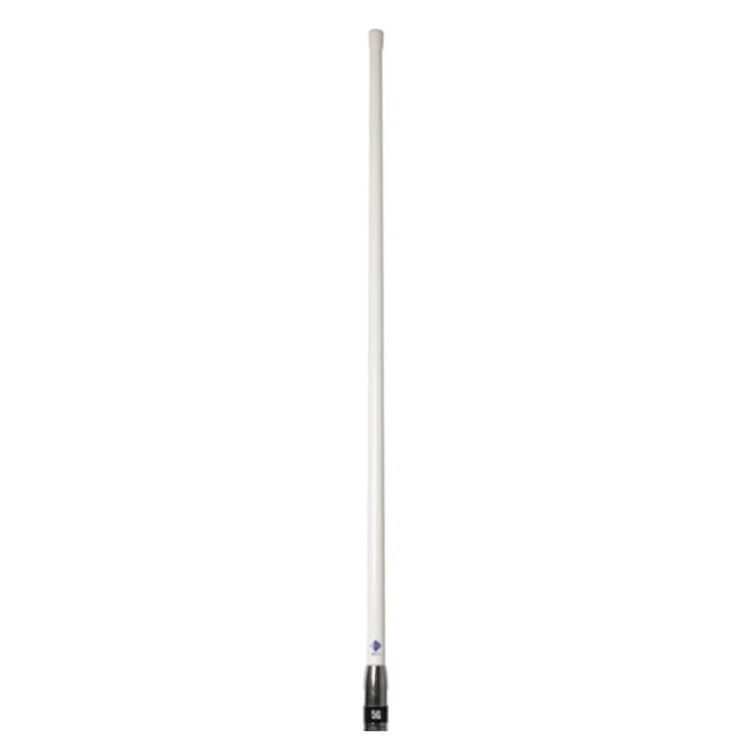

RFI heavy duty and tough looking Cellular 5G/4G/4Gx Antenna Whip for the RFI Q-Fit® heavy duty spring base.
The antenna has a nominal gain of 6.5dBi at 698-960MHz and measures 970mm in length including the Heavy Duty spring base.
Words direct from RFI:
The new CDQ8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz). It is our flagship product and is designed for the harsh Australian conditions. It is ideal for use with cellular modems & active repeaters & includes an integrated spring with threaded stud/nut for easy installation on vehicles. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.
The outstanding performance of the CDQ8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
- Patented PCB based collinear design offering the ultimate in pattern and gain stability
- Ideal for new 5G/LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security
|Brand||RF Industries (RFI)|
|Antenna Frequency||698 - 960 / 1710 - 2170 / 2300 - 2700 / 3400 - 3800 MHz|
|Antenna Gain||6.5 / 4.5 / 5.5 / 6.5 dBi|
|Antenna Length||970mm incl. spring base|
|Removable Whip Connection||RFI Q-Fit|
|Diameter||22.5 to 15.6mm Tapered|
|Antenna Material / Construction||PCB Radiating Element Housed in Tapered High Impact Fibreglass Whip|
