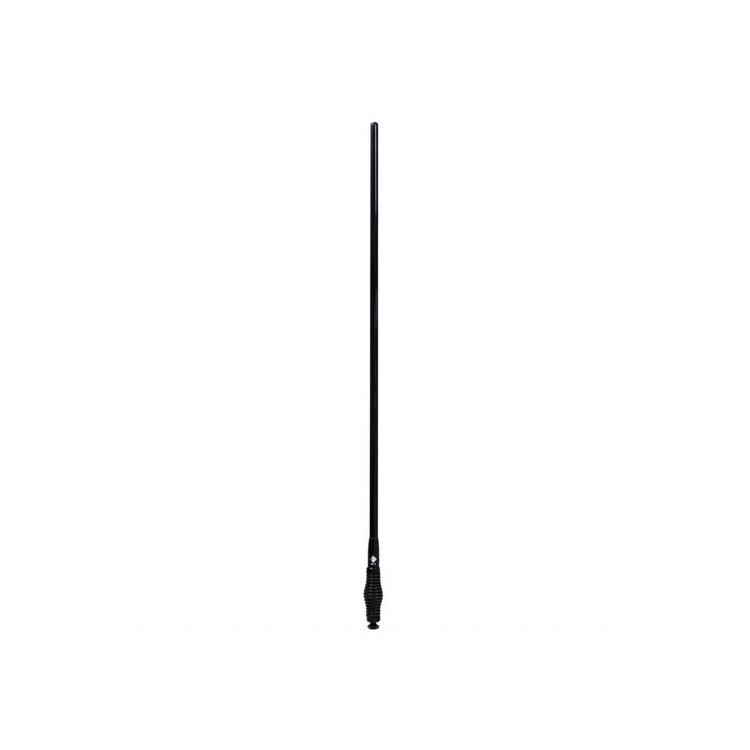

RFI CDR7194-B 5dBi Black Cellular Mobile Phone Antenna
$159.50
Quick Overview
RFI CDR7194-B Cellular Antenna Aerial 5.5dBi Mobile Antenna.
FAST DELIVERY
On all in-stock items
New customer? Start Here.
RFI CDR7194-B Cellular Antenna Aerial 5.5dBi Mobile Antenna.
On all in-stock items
The CDR7100 Series sits in between the market leading RFI Light Duty CD7195 and Heavy Duty CDQ7195. It is basically a light duty CDQ7195 (i.e. uses our CD7195 16mm parallel radome and a CD900 Series spring assembly). The CDR7194 whip can be removed via the integrated Q-Fit® removable whip system.
Features: Comes with 5m low loss 9006/RG58 coaxial cable fitted with an SMA male connector. Patented PCB based collinear design offering the ultimate in pattern and gain stability Ideal for all new 4G LTE networks with true multi-band coverage.
High gain across all bands makes it suitable for fringe and rural applications.
Brand | RF Industries (RFI) |
---|---|
Colour | Black |
Antenna Frequency | 698 - 960 / 1710 - 2170 / 2500 - 2700 MHz |
Antenna Gain | 5 dBi |
Antenna Length | 695mm |
Removable Whip | Yes |
Removable Whip Connection | RFI Q-Fit |
Strength | Medium Duty |
Mounting | Medium Duty Spring with 13mm Stud |
Cable Length | 5m |
Cable Type | RFI-9006 (RG58) |
Connector | SMA (Male) |
Antenna Material / Construction | PCB Radiating Element Housed in Tapered High Impact Fibreglass Whip |
Antenna Power | 10W |
VSWR | R <2.5:1 |
