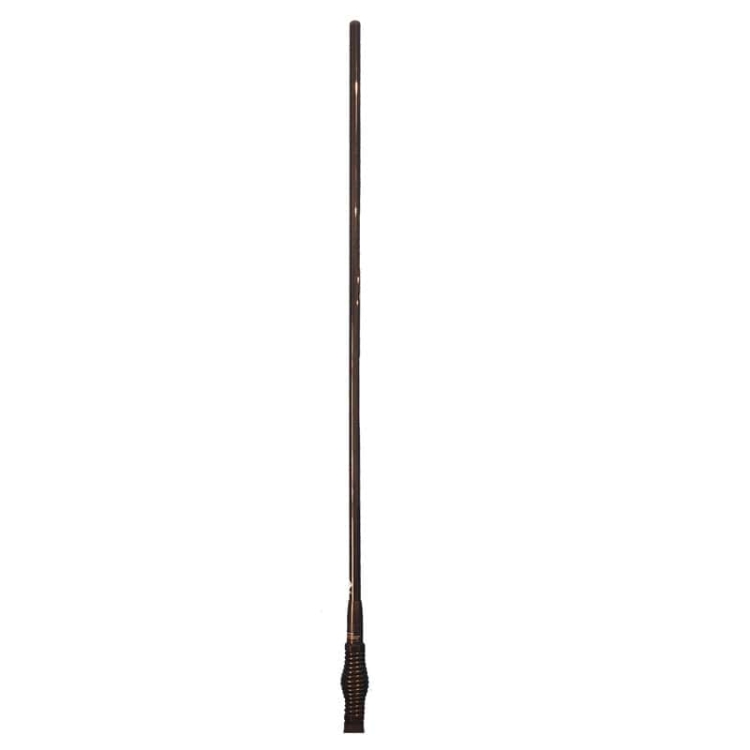

RFI CDR Series 6.5dB Black Cellular Collinear Antenna with 5m Cable and SMA Connector
$176.00 - xxx
Or make 4 Interest free fortnightly payments of
$xx.xx
with
PayPal
Overview:
RFI CDR Series 6.5dB medium duty 4G LTE cellular antenna in black with Q-Fit® removable whip.
- We use Australia Post for most of our deliveries.
- Orders are typically processed and shipped with tracking details within 1-3 business days. You can expect your parcel within 2-8 business days from when it leaves our warehouse.
- For more info, visit our Delivery or Refunds & Returns pages.
| SKU | RFI-CDR5B-SMA |
|---|---|
| Colour | Black |
| Antenna Frequency | 698 - 960 / 1710 - 2170 / 2300 - 2700 MHz |
| Antenna Gain | 6.5 / 4.5 / 5.5 dBi |
| Antenna Length | 930mm |
| Removable Whip | Yes |
| Removable Whip Connection | Integrated N Type Connector |
| Diameter | 16mm |
| Strength | Medium Duty |
| Mounting | Medium Duty Spring with 13mm Stud |
| Cable Length | 5m |
| Cable Type | RFI-9006 (RG58) |
| Connector | SMA (Male) |
| Antenna Material / Construction | PCB Radiating Element Housed in Fibreglass Whip |
| Antenna Power | 10W |
| VSWR | <2.5:1 |
The CDR7100 Series sits in between the market leading RFI Light Duty CD7195 and Heavy Duty CDQ7195.
It is basically a light duty CDQ7195 (i.e. uses our CD7195 16mm parallel radome and a CD900 Series spring assembly).
The CDR7195 whip can be removed via the integrated Q-Fit® removable whip system.
Features:
Comes with 5m low loss 9006/RG58 coaxial cable fitted with an SMA male connector
Patented PCB based collinear design offering the ultimate in pattern and gain stability
Ideal for all new 4G LTE networks with true multi-band coverage
High gain across all bands making it suiting fringe and rural applications
Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security
