RFI 6.5dBi 5G 4G 3G Collinear Base Station Antenna Mast Mount

$187.00
In stock
MPN
COL8195
SKU
RFI-COL8195
This product is over AusPost size limit and will be sent via another carrier to a physical address only
RF Industries (RFI)

FAST DELIVERY



On all in-stock items

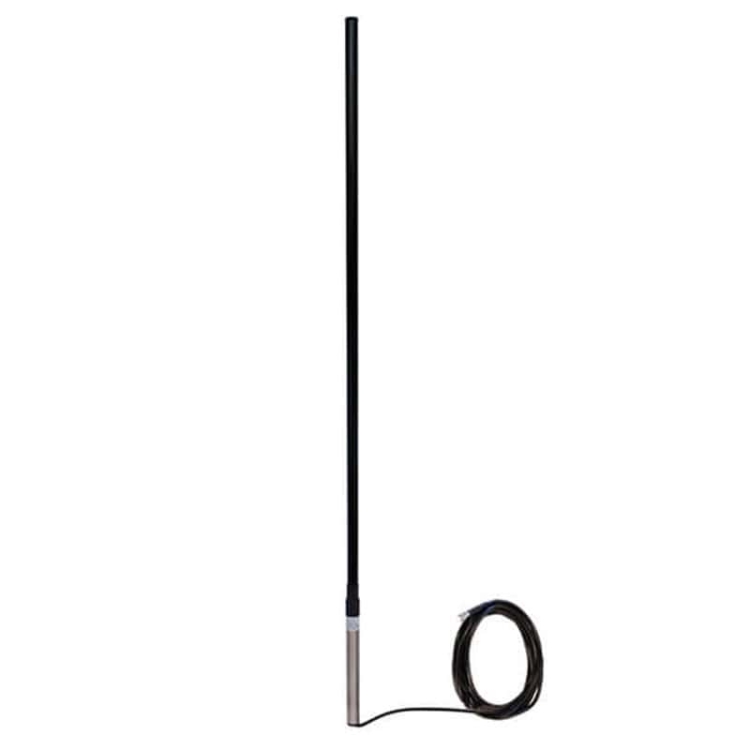

The evolution continues with the release of the COL8195 Series 5G Compatible cellular Meander™ collinear antenna. Like the COL8195 Series, the secret to its outstanding performance lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

With a 200mm (x 19mm) stainless steel mounting tube, the COL8195 Series is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps, which have an adjustment of 27-51mm.

Features:

  • Patented PCB based collinear design offering the ultimate in pattern and gain stability
  • Ideal for all 3G, 4G and 5G networks with true multi-band coverage
  • High gain across all bands
More Information
BrandRF Industries (RFI)
ColourBlack
Antenna Frequency698 - 960 / 1710 - 2170 / 2300 - 2700 / 3400 - 3800 MHz
Antenna Gain6.5 / 4.5 / 5.5 / 6.5 dBi
Antenna Length965mm
Removable WhipNo
Diameter15.6mm
StrengthStandard Duty
Mounting2x S/S Hose Clamps around 200mm along S/S Mounting Tube
Cable Length10m
Cable TypeRFI-9006 (RG58)
ConnectorSMA (Male)
Antenna Material / ConstructionBlack Fibreglass Radome with 200mm S/S Mounting Tube
Antenna Power10W
VSWR<2.5:1
