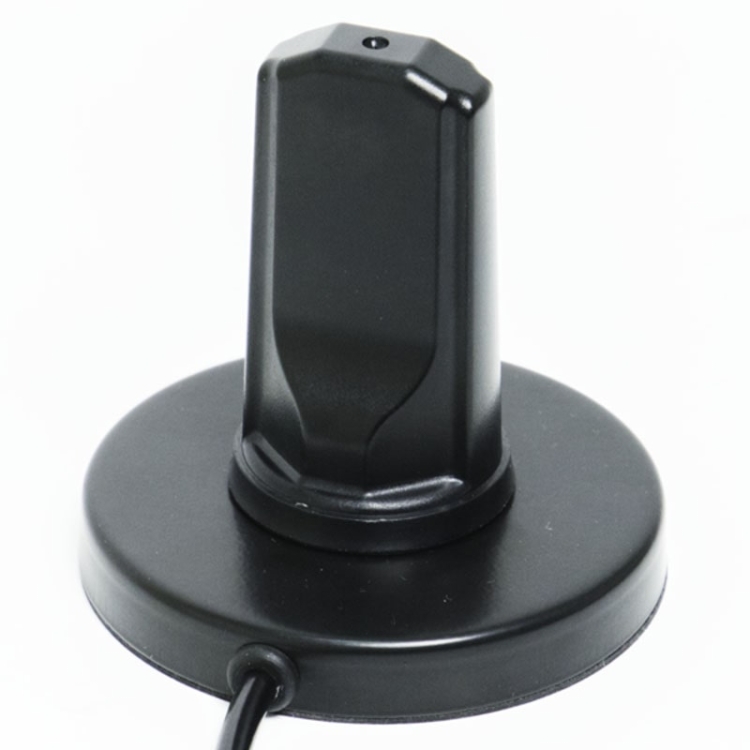

RFI CSM600 3G 4G Magnetic Base Antenna with 4m Cable and SMA Connector

$88.00
In stock
MPN
CSM600-MAG-4M-SMA
SKU
RFI-CSM600-MAG-4M-SMA
RF Industries (RFI)

$9 DELIVERY



On all Australian orders

It's a compact low-profile omni-directional LTE antenna that provides excellent coverage for mobile and fixed data applications from 698-960MHz and 1710-2700MHz.

The antenna features and attractive, compact housing which can be used both indoor/outdoor applications and is IP65 rated.

Features:

  • Super strong magnetic base
  • Multi-band LTE coverage
  • Compact low profile design
  • IP65 rating
More Information
BrandRF Industries (RFI)
ColourBlack
Antenna Frequency698 - 960 / 1710 - 2170 / 2300 - 2700 MHz
Antenna Gain2.5 / 3.3 / 4.6 dBi
Antenna Length200mm Dia x 180mm Tall
Removable WhipN/A
Diameter200mm
StrengthStandard Duty
MountingMagnetic Base
Cable Length4m
Cable TypeRG58
ConnectorSMA (Male)
Antenna Material / ConstructionUV Stable Black Polycarbonate Radome
Antenna Power10W
VSWR<2.5:1
