RFI LPDA7038 5G 11dBi LPDA Wideband Directional Antenna 10m Cable SMA Plug

In stock
Only 5 left
MPN
LPDA7038-11-10SMA
SKU
RFI-LPDA7038-11-10SMA
This product is over AusPost size limit and will be sent via another carrier to a physical address only
$209.00
Quick Overview

RFI 11dBi LPDA 7038 Wide Band 698 MHz to 3800 MHz Directional Antenna has up to 11dBi high gain for long distances. Comes with 10m coaxial cable fitted with a male SMA connector.

This antenna is a direct replacement for the RFI LPDA7030 antenna.

We recommend and use this antenna where a high gain up to 11dBi across the 698 MHz to 2700 MHz frequency ranges is required. This is generally rural areas that are a fair distance from the cell towers and only get 3G and 4G low band coverage. For systems that need an 11dBi gain in the higher bands up to 4000 MHz, we recommend the RFI LPDA7040 antenna.

FAST DELIVERY

On all in-stock items

This wide-band Log Periodic Dipole Array ( LPDA ) antenna offers high gain directional coverage and is suited to all global cellular and various other wireless network applications.

The unique ruggedized diecast aluminium construction ensures optimum performance and reliability in all weather and operating environments.

The LPDA cellular antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suite pole diameters of up to 60mm and the antenna includes 10m of low loss RG58 cable terminated with an SMA male connector.

Features:

  • Wide band frequency range ( 700MHz to 3000MHz )
  • 10m RG58 coaxial cable with SMA male connector included
  • Excellent front-to-back ratio
  • Easy installation using supplied hardware
  • PIM rated to -150dBc

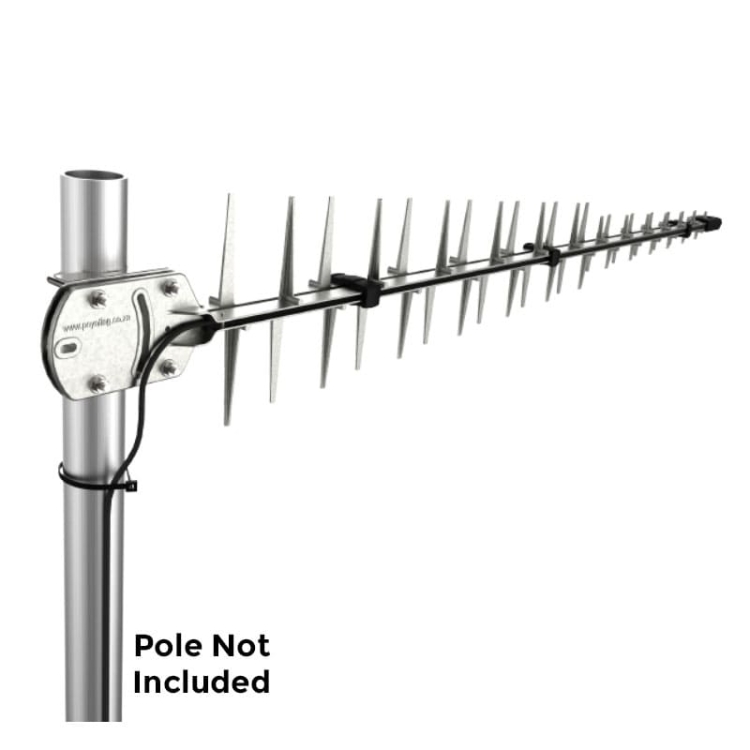

NOTE: Pole in picture is not included

More Information
ManufacturerRF Industries
ColourSilver - Aluminium
Antenna Frequency698 - 960 / 1427 - 1517 / 1710 - 2700 / 3400 - 3800 MHz
Antenna Gain10.8 / 10 / 11 / 2.3 dBi
Antenna Length110cm
Removable WhipN/A
StrengthHeavy Duty
Mounting2x S/S U-Bolts 60mmx90mm with pole brackets
Cable Length10m
Cable TypeRFI-9006 (RG58)
ConnectorSMA (Male)
Antenna Material / ConstructionAluminium
Antenna Power10W
VSWR<2.0:1
RFI LPDA7038 Specifications
RFI LPDA7038 Installation Guide
