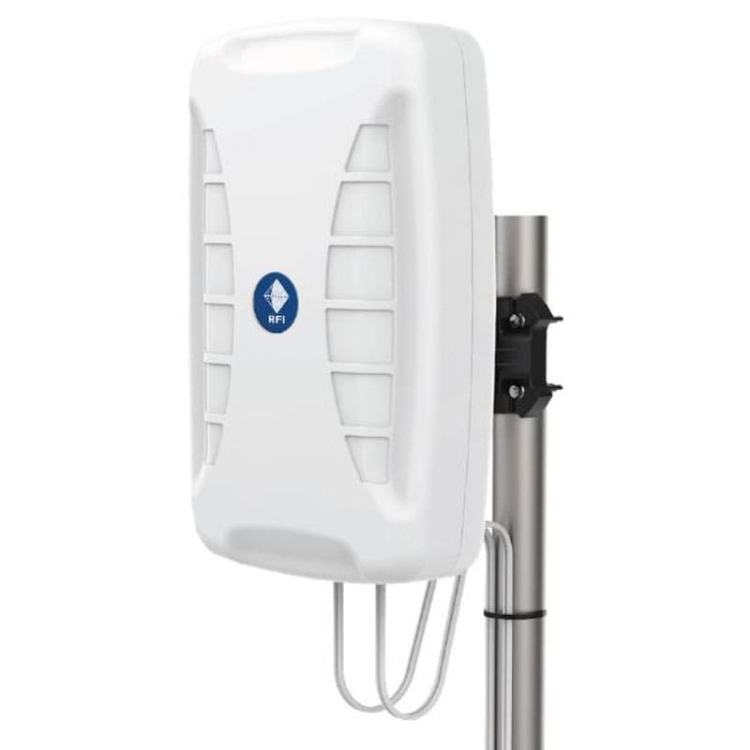

RFI LTE-XPOL-4X4-5G-D 5G XPOL 4x4 MIMO Wideband 11dBi Directional Panel Antenna with 4 N(F) Bulkhead Connectors
Overview:
- We use Australia Post for most of our deliveries.
- Orders are typically processed and shipped with tracking details within 1-3 business days. You can expect your parcel within 2-8 business days from when it leaves our warehouse.
- For more info, visit our Delivery or Refunds & Returns pages.
| SKU | RFI-XPOL4D5G |
|---|---|
| Manufacturer | RF Industries |
| Colour | Black |
| Antenna Frequency | 617 - 960 / 1710 - 2700 / 3400 - 4200 |
| Antenna Gain | 8.5 / 8.5 / 11 dBi |
| Removable Whip | N/A |
| Mounting | Wall or Pole Mount |
| Cable Length | 0m - Bulkhead Connectors |
| Cable Type | N/A |
| Connector | N/A |
| Antenna Material / Construction | UV Stable ASA |
| Antenna Power | 10W |
| VSWR | <2.0:1 |
The LTE-5G-XPOL-4X4(-NF) expands the very popular Cross Polarised (LTE-XPOL) antenna range with 4×4 MIMO 5G/LTE bands providing exceptional performance from 617 to 4200 MHz. This is due to the incorporation of advanced metamaterial technology, making use of an Artificial Magnetic Conductor (AMC) and a new registered/patent configuration, which has proven to yield exceptional improvements in bandwidth and gain.
The radiation patterns of this antenna are exceptionally well controlled, which further adds to the exceptional performance of the antenna.
The LTE-5G-XPOL-4X4(-NF) offers wideband frequency coverage from 617 to 4200 MHz, with a peak gain of 11dBi across the bands of operation. The antenna performs exceptionally well in the following frequency bands: 617 – 960 MHz, 1710 – 2170 MHz, 2300 – 2700 MHz & 3400 – 4200 MHz. The exceptional wideband performance is an important factor for 5G/LTE technologies, as these technologies rely on features such as Carrier Aggregation (CA) to provide the best possible reception and throughput over multiple frequency bands simultaneously. This makes the LTE-5G-XPOL-4X4 the go-to solution for current and future 5G/LTE antenna deployments.
Features:
- X-Polarised 4x4 MIMO for current and future technologies
- Wideband coverage with exceptional performance
- Operates from 617 to 4200 MHz with up to 11 dBi gain
- Various mounting options for ease of installation (pole or wall bracket included)
- IP65 weatherproof & waterproof rating
