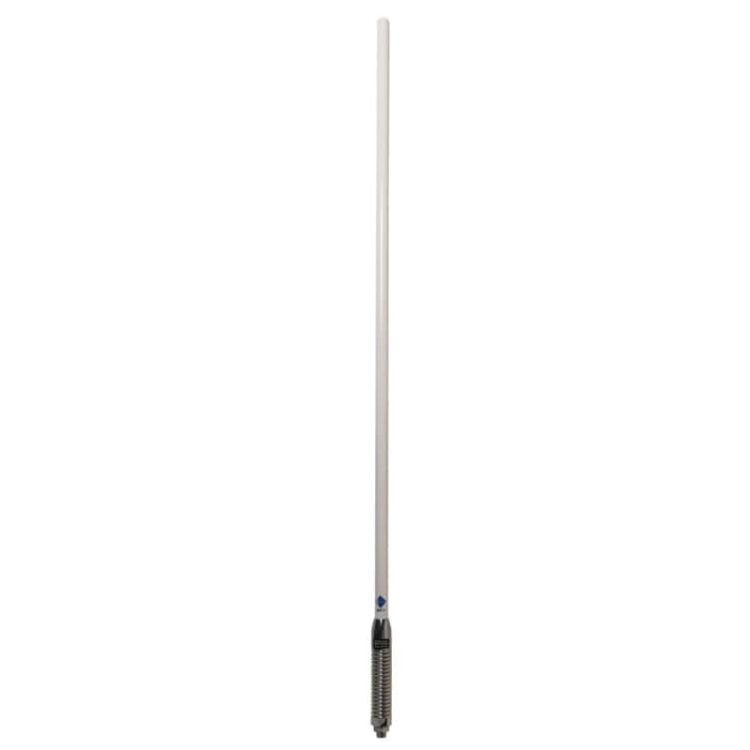

RFI CD7195-W 6.5dBi White Cellular Mobile Phone Antenna

Out of stock
MPN
CD7195-W-SMA
SKU
RFI-CD5W-SMA
$121.00
Quick Overview

RFI CD7195 6.5dB standard duty 4G LTE cellular antenna in white

FAST DELIVERY

On all in-stock items

With a 13mm stud mount on a chromed stainless steel spring, this antenna can be installed on a number of mounting brackets and is ideal for cars, commercial vehicles, four wheel drives and trucks that primarily stay on the hard top bitumen such as highways and light dirt roads. Great cheaper option for applications where the majority of travel is around town and on highways.

Features:

  • Patented PCB based collinear design offering the ultimate in pattern and gain stability
  • Ideal for all 3G and 4G networks with true multi-band coverage
  • High gain across all bands making it suitable for town fringe and rural applications
More Information
ColourWhite
Antenna Frequency698 - 960 / 1710 - 2170 / 2300 - 2700 MHz
Antenna Gain6.5 / 4.5 / 5.5 dBi
Antenna Length890mm
Removable WhipNo
Diameter15.6mm
StrengthStandard Duty
MountingStandard Duty Spring with 13mm Stud
Cable Length5m
Cable TypeRFI-9006 (RG58)
ConnectorSMA (Male)
Antenna Material / ConstructionPCB Radiating Element Housed in Fibreglass Whip
Antenna Power10W
VSWR<2.5:1
