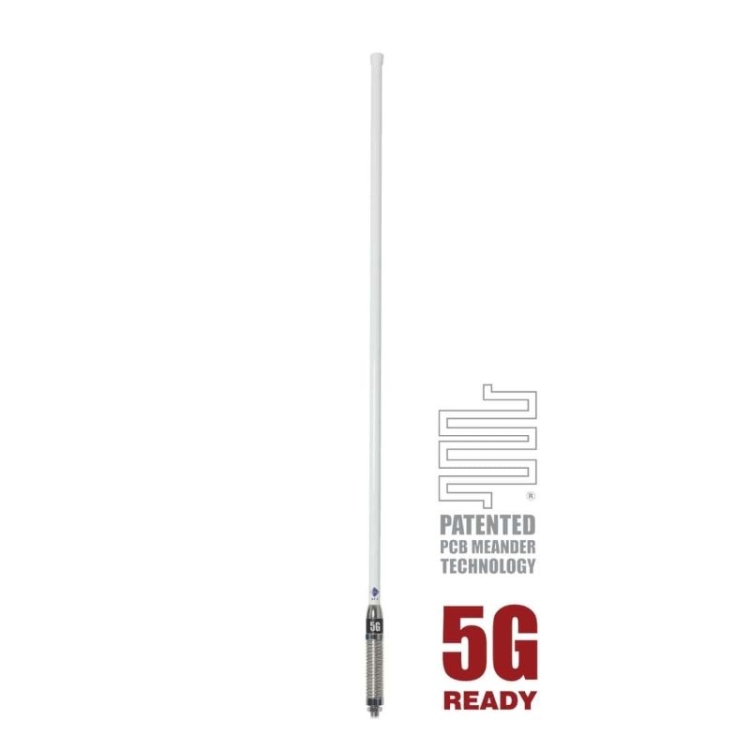

RFI CD8197-W 5G 7.5dBi White Cellular Mobile Phone Antenna

In stock
MPN
CD8197-W
SKU
RFI-CD8197W
This product is over AusPost size limit and will be sent via another carrier to a physical address only
$167.75
Quick Overview

The RFI CD8197-W LTE Antenna has a flexible PCB design that allows for superior gain consistency across 3G, 4G and 5G bands. The CD8197-W is a High-Gain 7.5dBi Antenna and is ideal for flat country driving.

FAST DELIVERY

On all in-stock items

The RFI CD8197W LTE antenna not only covers the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).

It is ideal for use with cellular modems, Cel-fi GO G31 and G41 Repeaters, especially when signal from the tower is poor.

The outstanding performance of the CD8197W lies in the use of a flexible PCB radiating element providing consistency in gain, coverage pattern and bandwidth.

The CD8197W is able to operate across all mobile phone networks globally, housed in the one unit.

A single piece antenna with standard duty spring base, ideal for mounting on nudge bars, roof racks, bullbars or bonnet mounts.

More Information
ColourWhite
Antenna Frequency698 - 960 / 1710 - 2170 / 2300 - 2700 / 3400 - 3800 MHz
Antenna Gain7.5 dBi
Antenna Length1160mm
Removable WhipNo
StrengthStandard Duty
MountingStandard Duty Spring with 13mm Stud
Cable Length5m
Cable TypeRFI-9006 (RG58)
ConnectorSMA (Male)
Antenna Material / ConstructionPCB Radiating Element Housed in Fibreglass Whip
Antenna Power10W
VSWR<2.5:1
