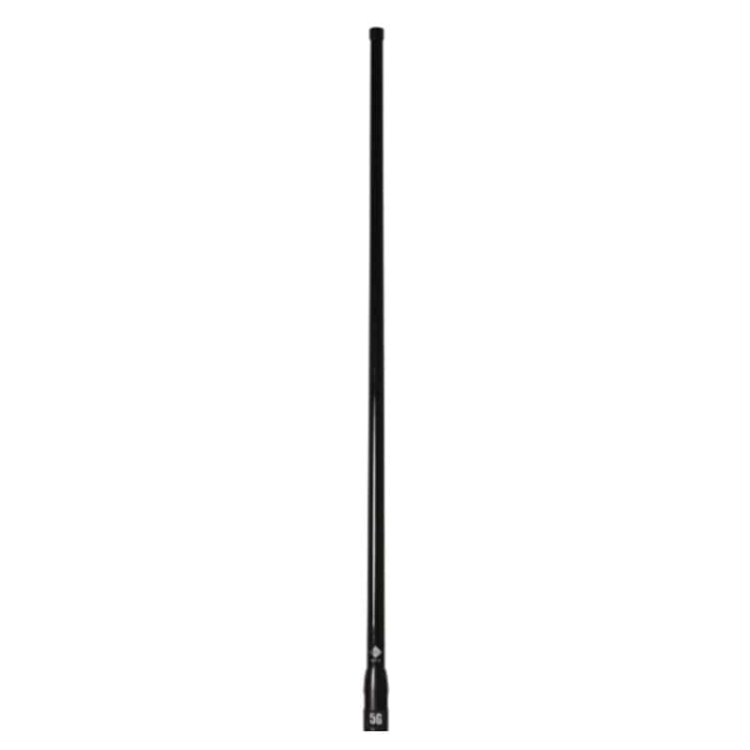

RFI CDQ8194-B-WHIP 5G 5.5dBi Cellular Mobile Phone Antenna Whip Black

In stock
MPN
CDQ8194-B-WHIP
SKU
RFI-CDQ8194B-WHIP
$159.50
Quick Overview

RFI CDQ8194-B-WHIP 5G 5.5dBi Cellular Mobile Phone Antenna Whip Black

FAST DELIVERY

On all in-stock items

RFI heavy duty and tough looking Cellular 5G/4G/4Gx Antenna Whip for the RFI Q-Fit® heavy duty spring base.

The antenna has a nominal gain of 5.5dBi at 698-960MHz and measures 735mm in length including the Heavy Duty spring base.

See our MORE INFORMATION tab for specifics on actual frequency range and gain across the frequency ranges that this antenna can handle and our DOWNLOADS tab for downloads related to this antenna.

Words direct from RFI:

The new CDQ8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz). It is our flagship product and is designed for the harsh Australian conditions. It is ideal for use with cellular modems & active repeaters & includes an integrated spring with threaded stud/nut for easy installation on vehicles. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.

The outstanding performance of the CDQ8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

Key Features:

  • Patented PCB based collinear design offering the ultimate in pattern and gain stability
  • Ideal for new 5G/LTE networks with true multi-band coverage
  • High gain across all bands making it suiting fringe and rural applications
  • Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security



More Information
ManufacturerRF Industries
ColourBlack
Antenna Frequency698 - 960 / 1710 - 2170 / 2300 - 2700 / 3400 - 3800 MHz
Antenna Gain5.5 / 4.5 / 5.5 / 6.5 dBi
Antenna Length735mm incl. spring base
Removable WhipYes
Removable Whip ConnectionRFI Q-Fit
Diameter22.5 to 15.6mm Tapered
StrengthHeavy Duty
MountingN/A
Cable LengthN/A
Cable TypeN/A
ConnectorN/A
Antenna Material / ConstructionPCB Radiating Element Housed in Tapered High Impact Fibreglass Whip
Antenna Power10W
VSWR<2.5:1
