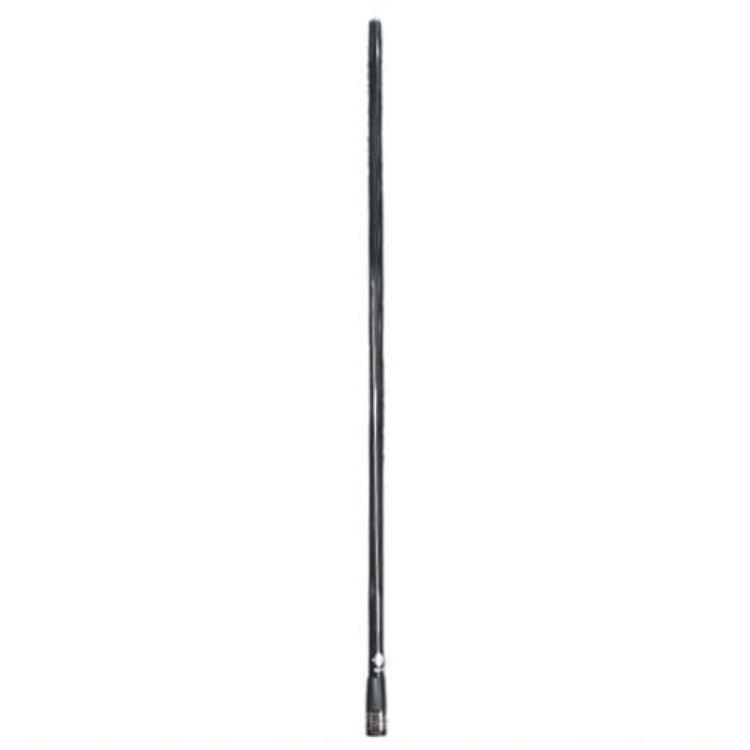

RFI CDR7195-B-WHIP 6.5dB Black Cellular Collinear Antenna Whip Only
RFI's CDR7195-B-Whip is the replacement whip only for the CDR7195 Cellular Antenna Aerial. 6.5dBi Black Antenna whip that will attached the CDR antenna spring base.
FAST DELIVERY
On all in-stock items
The antenna has a nominal gain of 6.5dBi at 698-960MHz and measures 970mm in length including the Medium Duty spring base.
The outstanding performance of the CDR7100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all 3G and 4G mobile phone networks globally, housed in the one unit.
Key Features:
Patented PCB based collinear design offering the ultimate in pattern and gain stability
Ideal for new 5G/LTE networks with true multi-band coverage
High gain across all bands making it suiting fringe and rural applications
Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security
| Colour | Black |
|---|---|
| Antenna Frequency | 698 - 960 / 1710 - 2170 / 2500 - 2700 MHz |
| Antenna Gain | 6.5 dBi |
| Antenna Length | 920mm |
| Removable Whip | N/A |
| Removable Whip Connection | RFI Q-Fit |
| Diameter | 22.5 to 15.6mm Tapered |
| Strength | Medium Duty |
| Mounting | N/A |
| Cable Length | N/A |
| Cable Type | N/A |
| Connector | N/A |
| Antenna Material / Construction | PCB Radiating Element Housed in Tapered High Impact Fibreglass Whip |
| Antenna Power | 10W |
| VSWR | <2.5:1 |
