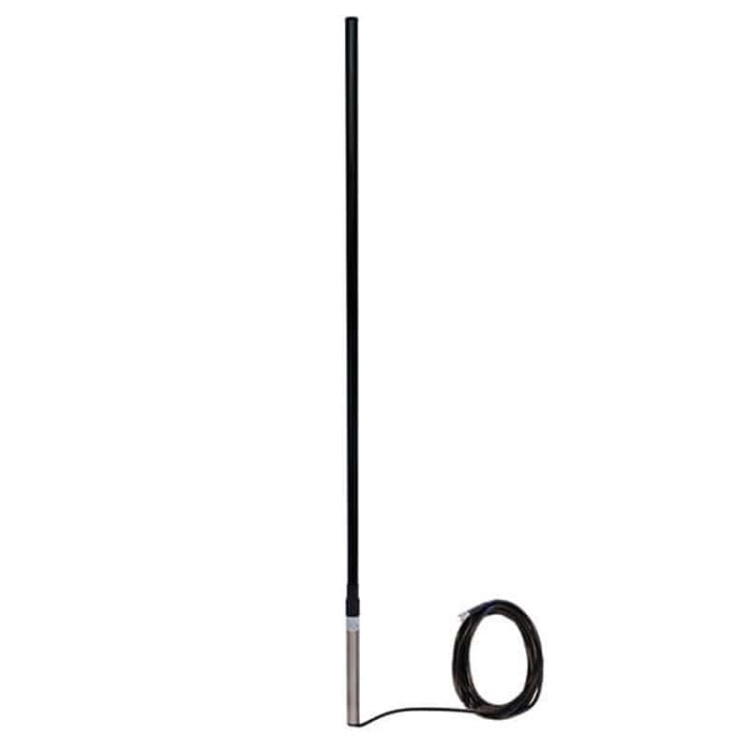

RFI COL8199 5G 8.5dBi Base Station Antenna
Overview:
- We use Australia Post for most of our deliveries.
- Orders are typically processed and shipped with tracking details within 1-3 business days. You can expect your parcel within 2-8 business days from when it leaves our warehouse.
- For more info, visit our Delivery or Refunds & Returns pages.
| SKU | RFI-COL8199 |
|---|---|
| Manufacturer | RF Industries |
| Colour | Black |
| Antenna Frequency | 698 - 960 / 1710 - 2170 / 2300 - 2700 / 3400 - 3800 MHz |
| Antenna Gain | 8.5 / 4.5 / 5.5 / 6.5 dBi |
| Antenna Length | 1730mm |
| Removable Whip | No |
| Diameter | 15.6mm |
| Strength | Standard Duty |
| Mounting | 2x S/S Hose Clamps around 200mm along S/S Mounting Tube |
| Cable Length | 10m |
| Cable Type | RFI-9006 (RG58) |
| Connector | SMA (Male) |
| Antenna Material / Construction | Black Fibreglass Radome with 200mm S/S Mounting Tube |
| Antenna Power | 10W |
| VSWR | <2.5:1 |
The evolution continues with the release of the COL8199 Series 5G Compatible cellular Meander™ collinear antenna. Like the COL8199 Series, the secret to its outstanding performance lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
With a 200mm (x 19mm) stainless steel mounting tube, the COL8199 Series is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps, which have an adjustment of 27-51mm.
Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability
- Ideal for all 3G, 4G and 5G networks with true multi-band coverage
- High gain across all bands
