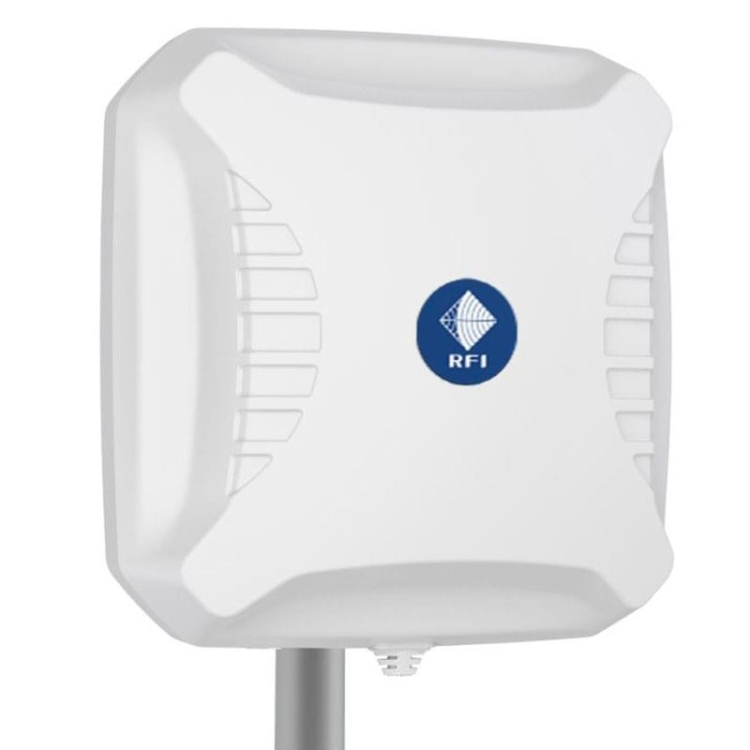

RFI XPOL Directional MIMO 2x2 3G/4G/5G Panel Antenna with Two N Female Bulkhead Connectors

$283.80
In stock
Only 1 left
MPN
LTE-XPOL-002-5G-NF
SKU
RFI-XPOLD25GNF
RF Industries (RFI)

FAST DELIVERY



On all in-stock items

Want super fast internet?

This is the antenna to hook up to your Nighthawk or other 5G mobile router and will deliver you with speeds to pretty much do what you want on the internet. The antenna has a MIMO setup which is 2 antennas which are cross polarised at  45°, 90° from each other to match the cell towers polarisation and works by doubling the throughput out of the one physical unit.

The RFI LTE-XPOL-002-5G-NF comes with 2x N type female bulkhead fittings mounted in the rear for connection of your own cables, ordered separately.

Modem Antenna Ports:

*** Check your router specifications to confirm what your antenna ports actually are before ordering as manufacturers like to change things around from time to time ***

The LTE-XPOL-002-5G antenna includes the newer 3400 - 3800 MHz bands, which were not previously covered by our V2 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 698 – 960MHz, 1700 – 2170MHz, 2300 – 2700MHz & 3400 – 3800MHz. In addition to the new bands, the gain in the 1700MHz and 2.7GHz is around 3dB higher than the “V2” over the same frequency bands! The weatherproof housing is designed for mast or wall mounting .

Features:

  • 2-3dB higher gain over all the bands compared to “V2”
  • New 3400MHz-3800MHz, 5G band with 11dBi gain
  • Consistent broadband performance
  • X-Polarised 2x2 MIMO antenna
  • Wall or pole mountable
  • Lightweight & rugged
  • Weatherproof & waterproof (IP65)
  • High pattern consistency across bands for 4G/5G carrier aggregation
More Information
BrandRF Industries (RFI)
ColourWhite
Antenna Frequency698 - 960 / 1710 - 2700 / 3400 - 3800 MHz
Antenna Gain9 / 10 / 11 dBi
Removable WhipN/A
MountingScrews / Bolts (Supplied)
Cable Length10m
Cable TypeN/A
ConnectorN Type (Female)
Antenna Material / ConstructionUV Stable ABS Radome
Antenna Power10W
VSWR<1.5:1
