RFI GM06-0738 Mesh Parabolic Antenna 21dBi 0.6m Cable 4.3-10(f) Connector

Out of stock
MPN
GM06-0738
SKU
RFI-GM06-0738
$880.00
Quick Overview

RFI’s LTE SISO Parabolic antenna has been designed to maximise throughput for modern LTE/5G repeater systems up to 3800MHz.

Featuring wideband, Low PIM performance and high gain up to 24dBi, the RFI GM06 parabolic antenna minimises noise which maximises the Signal to Noise Ratio (SINR), to deliver an improved level of reliability and predictability via a cleaner, more direct link to donor sites.

FAST DELIVERY

On all in-stock items

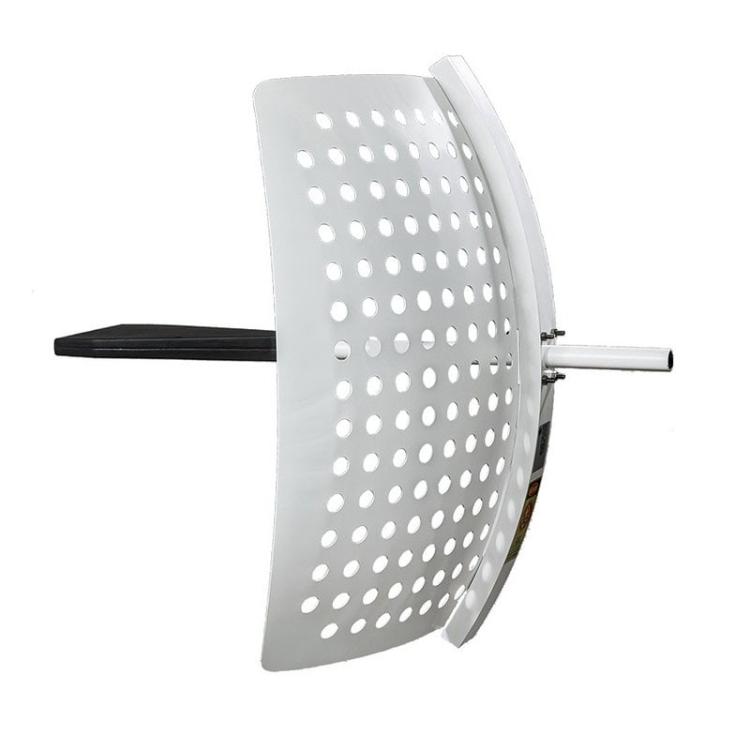

The GM06 mesh mini-grid is a lightweight yet ruggedized parabola grid providing highly reliable point-to-point communication.

Utilising PCB manufacturing techniques, this grid offers best-in-class reliability and performance, with Low PIM performance, high reliability, pattern stability, and more importantly, repeatability.

Although highly durable in design, wind loading and weight has been reduced, through respective design elements, including tubular aluminum, and lightweight, UV stabilised ABS radome and PCB element.

By purchasing an optional GA Clamp, you can achieve full articulation and polarisation adjustment, offering more assistance and improvement in time during installation.

Features:

  • Full band solution, 698-3800MHz coverage
  • Vertical, Horizontal, or ±45 linear polarisation
  • Easy installation
  • Clamp options available
  • Lightweight yet durable design
More Information
ManufacturerRF Industries
ColourWhite
Antenna Frequency698 - 960 / 1710 - 2700 / 3400 - 3800 MHz
Antenna Gain10 / 21 / 24 dBi
Removable WhipN/A
Cable Length1m
Cable TypeN/A
Connector4.3-10 (Female)
Antenna Material / ConstructionAluminium
Antenna Power50W
VSWR2.0:1
