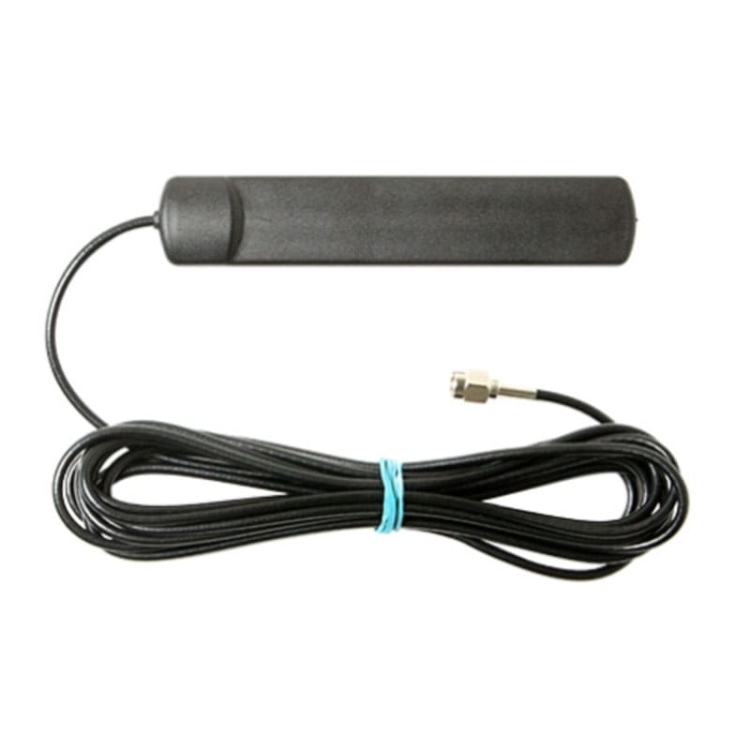

RFI T5 3G 4G 5G Slimline Adhesive Mount Patch Antenna with 5m Cable and SMA Connector

In stock
Only 2 left
MPN
T5-5M-SMA
SKU
RFI-T5-5M
$37.40
Quick Overview

RFI T5 slimline cellular patch antenna with 5m cable and SMA male connector suitable for up to 5925 MHz which covers 5G and technologies under 5G such as 4G and 3G Technologies.

This antenna is used for cellular applications such as IoT, IIoT and Mobile Phone Repeaters in vehicles and moving plant.

Available in cable lengths of 3m, 4m and 5m.

FAST DELIVERY

On all in-stock items

RFI brings 5GNR technology to our T5 Series by offering our new ground plane independent adhesive mount antenna.

This solution combines wideband multi-application device functionality that caters to 5GNR, 4G LTE, 3G, 2G and CDMA technologies operating within 617 MHz to 5925 MHz frequencies.

The T5 Series is a low-cost solution with easy installation through the simple peel-and-stick application making this antenna ideal for commercial, industrial and consumer industries.

More Information
ManufacturerRF Industries
ColourBlack
Antenna Frequency617 - 960 / 1427 - 2690 / 3300 - 5000 / 5150-5925 MHz
Antenna Gain3.2 / 3.6 / 1.0 / 1.6 dBi
Antenna Length116mm
Removable WhipN/A
MountingAdhesive Tape
Cable Length4m
Cable TypeLL100
ConnectorSMA (Male)
Antenna Material / ConstructionUV Stable ABS Radome
Antenna Power35W
VSWR~ <1.5:1
